Zener Limiter

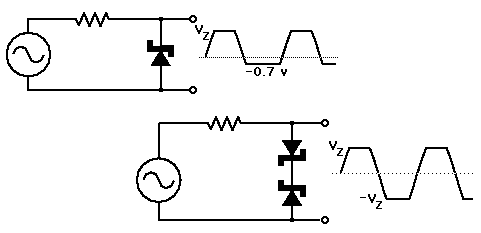

A single Zener diode can limit one side of a sinusoidal waveform to the zener voltage while clamping the other side to near zero. With two opposing zeners, the waveform can be limited to the zener voltage on both polarities.

Index

Electronics concepts

Diode applications

HyperPhysics*****Electricity and magnetismR Nave
Go Back








Diode Clamper

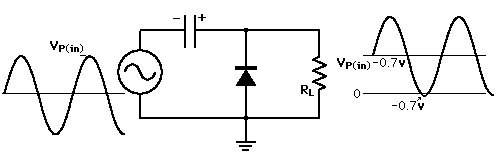

A diode can be used to clamp one side of a sinusoidal signal to near zero.
