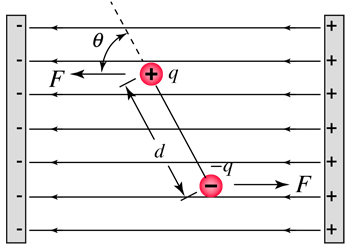

Torque on Electric Dipole

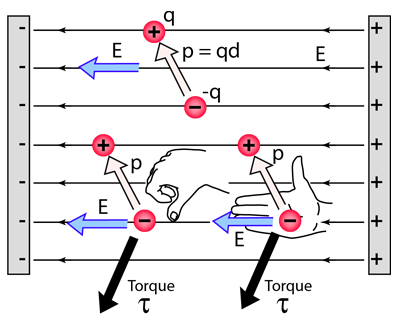

The torque produced on an electric dipole by an electric field can be expressed as a vector product with direction given by the right hand rule.

The lever arm for each charge with respect to the center is
Dipole fieldDipole potential
Index

Electric dipole concepts

HyperPhysics***** Electricity and Magnetism R Nave
Go Back

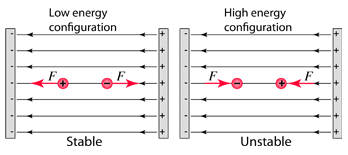

Energy of an Electric Dipole

An electric field produces a torque on a dipole
which tends to take it to its low energy configuration. To rotate it from the low energy state against the field requires work
where the shorter form employs the scalar product.
