Classification of IC ChipsLogic Families
Numbering of componentsIC Series Designations
Pinout diagrams
 Index

Electronics concepts

Digital Circuits

HyperPhysics*****Electricity and magnetismR Nave
 Go Back










IC Logic Circuits

IC 7400 NAND
IC 7420 4-input NAND Gates
IC 7432 OR Gates
IC 7402 NOR
IC 7486 XOR
...
IC 7404 Hex Inverter
IC 7408 Quad AND gate
...

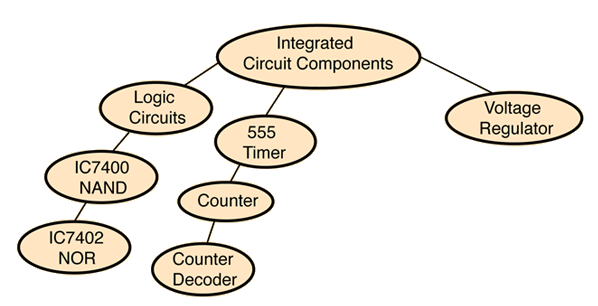

Integrated Circuit Components
 Index

Electronics concepts

Digital Circuits

HyperPhysics*****Electricity and magnetismR Nave
 Go Back





Classification of IC Chips

Classification of integrated circuit components may be by:

Number of gates
Logic family


Integrated Circuit Components
 Index

Electronics concepts

Digital Circuits

HyperPhysics*****Electricity and magnetismR Nave
 Go Back





IC Classification by Complexity

Classification of ICs from Tocci, Digital Systems.

Complexity
Number of Gates
Small-scale integration (SSI)
Fewer than 12
Medium-scale integration (MSI)
12 to 99
Large-scale integration (LSI)
100 to 9999
Very large-scale integration (VLSI)
10,000 to 99,999
Ultra large-scale integration (ULSI)
100,000 or more


Integrated Circuit Components
 Index

Electronics concepts

Digital Circuits

HyperPhysics*****Electricity and magnetismR Nave
 Go Back










IC Series Designations

Prefixes for integrated circuits.

.
TTL Series
Prefix
CMOS Series
Prefix
Standard TTL
74
Metal-gate CMOS
40 or 140
High-Speed TTL
74H
Metal-gate CMOS
40 or 140
Low-Power TTL
74L
Metal-gate, pin-compatible with TTL
74C
Schottky TTL
74S
Silicon-gate , pin-compatibel with TTL, high-speed
74HC
Low-power Schottky TTL
74LS
Si gate, high-speed, elect compatible with TTL
74HCT
Advanced Schottky TTL
74AS
...
...
Advanced low-power Schottky TTL
74ALS
...
...
