Tunnel Diode

The tunnel diode has a region in its voltage current characteristic where the current decreases with increased forward voltage, known as its negative resistance region. This characteristic makes the tunnel diode useful in oscillators and as a microwave amplifier.

Index

Electronics concepts

Diode varieties

HyperPhysics*****Electricity and magnetismR Nave
Go Back








Tunnel Diode Oscillator

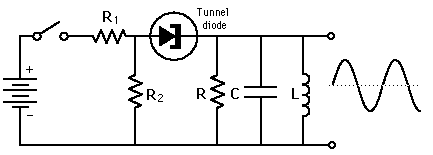

The negative resistance region of the tunnel diode makes oscillator action possible. The unijunction transistor has a similar oscillator application.
