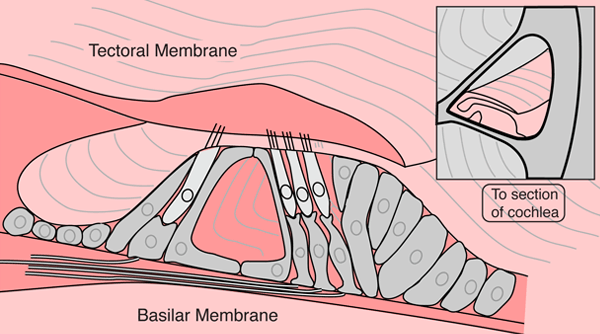

Organ of Corti

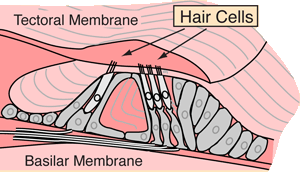

The organ of Corti is the sensitive element in the inner ear and can be thought of as the body's microphone. It is situated on the basilar membrane in one of the three compartments of the Cochlea. It contains four rows of hair cells which protrude from its surface. Above them is the tectoral membrane which can move in response to pressure variations in the fluid- filled tympanic and vestibular canals. There are some 16,000 -20,000 of the hair cells distributed along the basilar membrane which follows the spiral of the cochlea.

The place along the basilar membrane where maximum excitation of the hair cells occurs determines the perception of pitch according to the place theory. The perception of loudness is also connected with this organ.

Tiny relative movements of the layers of the membrane are sufficient to trigger the hair cells. Like other nerve cells, their response to stimulus is to send a tiny voltage pulse called an "action potential" down the associated nerve fiber (axon). These impulses travel to the auditory areas of the brain for processing.

Index

Hearing concepts

HyperPhysics***** Sound R Nave
Go Back










Arrangement of Hair Cells

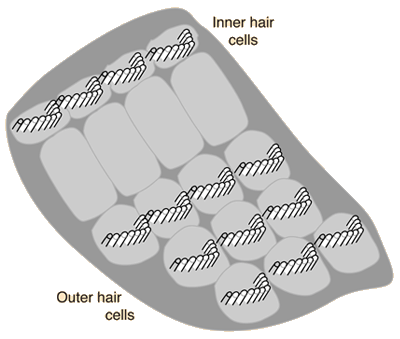

The hair cells of the organ of Corti are arranged in four rows along the length of the basilar membrane. Individual hair cells have multiple strands called stereocilia. There may be 16,000 - 20,000 such cells. The place theory of pitch perception suggests that pitch is determined by the place along this collection at which excitation occurs. The pitch resolution of the ear suggests a collection of hair cells like this associated with each distinguishable pitch.

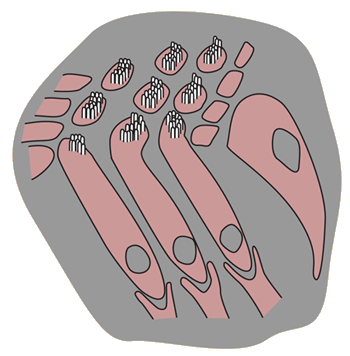

This is another conception of the arrangement of the outer three rows of hair cells, consistent with the above picture, but showing that a cluster of the cilia is associated with a single hair cell. It is drawn roughly from the work of McGutin. I think that the best that we know about the cilia arrangements comes from electron micrographs like those of Hudspeth.

Show individual hair cell
Index

Hearing concepts

Reference
McGutin

HyperPhysics***** Sound R Nave
Go Back

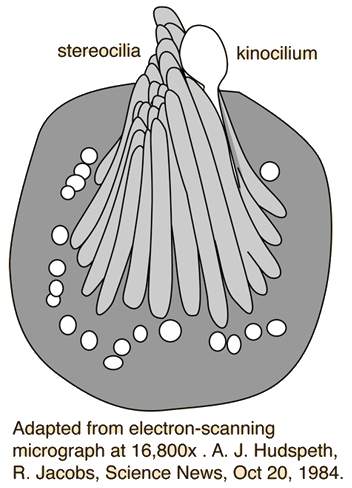

Single Hair Cell Structure

The sensitive hair cells of the organ of Corti may have about 100 tiny stereocilia which in the resting state are leaning on each other in a conical bundle. In response to the pressure variations in the Cochlea produced by sound, the stereocilia may dance about wildly and send electrical impulses to the brain.
