The RBMK-1000 Reactor

The four RBMK-1000 reactors at Chernobyl represented crude technology that was 30 years old at the time of the accident. They are in fact similar to that used by Enrico Fermi at University of Chicago's Stagg Field in 1942 to create world's first chain reaction. The 1000 indicates 1000MW (electrical). About half of soviet reactors use graphite moderators. Edwards says there are 15 RBMKs operating in USSR but that the other 40 reactors are similar to US reactors.

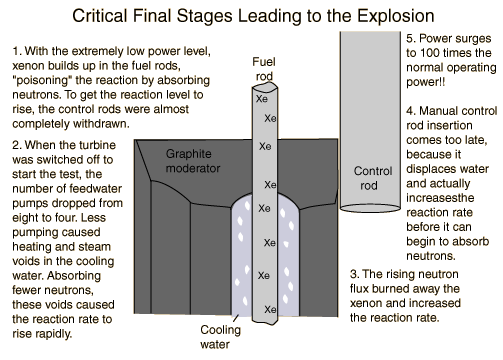

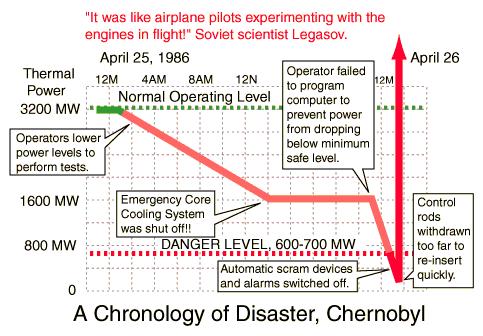

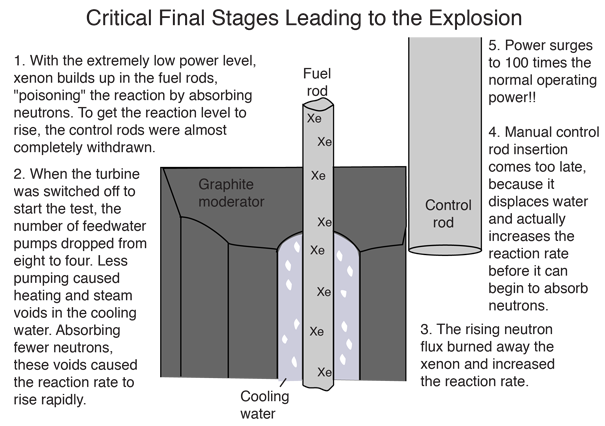

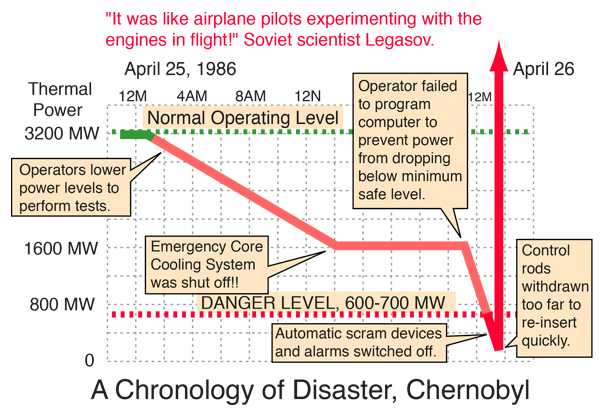

Since the graphite provides the major part of the moderation needed to sustain the chain reaction, the coolant water actually may provide excess moderation. This means that a void in the water coolant could actually increase the reaction rate. "...any increase in reactor power increases coolant boiling, which increases the steam void fraction, which in turn increases core reactivity and causes the power to rise even further." (Chernobyl and Its Legacy, EPRI) This positive void coefficient for the RBMK exists under most operating conditions and makes them particularly difficult to control at low power levels.

It also has a slow scram system. These soviet reactors are missing such safety features as the 6 to 8 inch steel reactor vessel and the steel and concrete reactor containment dome of the US light water reactors.

Core detail
Index

Chernobyl concepts

Nuclear energy concepts

Fission concepts

Reference
Edwards

HyperPhysics***** Nuclear R Nave
Go Back

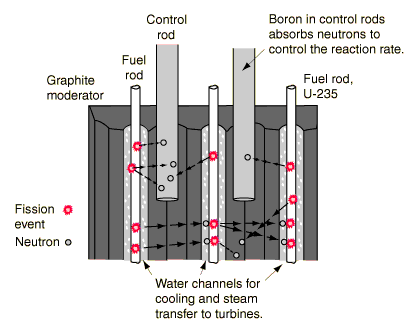

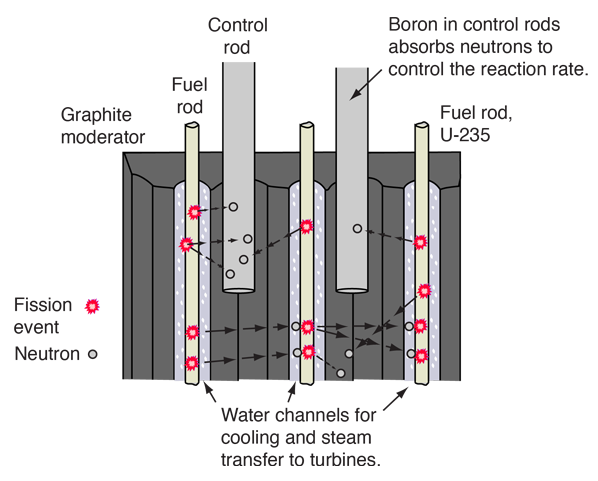

Core Detail of RBMK-1000 Reactor
