Ray Diagrams for Lenses

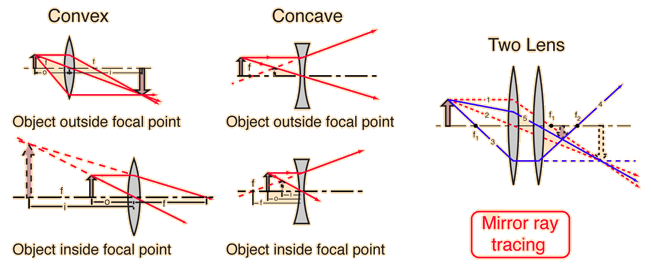

The image formed by a single lens can be located and sized with three principal rays. Examples are given for converging and diverging lenses and for the cases where the object is inside and outside the principal focal length.

The "three principal rays" which are used for visualizing the image location and size are:

  1. A ray from the top of the object proceeding parallel to the centerline perpendicular to the lens. Beyond the lens, it will pass through the principal focal point. For a negative lens, it will proceed from the lens as if it emanated from the focal point on the near side of the lens.
  2. A ray through the center of the lens, which will be undeflected. (Actually, it will be jogged downward on the near side of the lens and back up on the exit side of the lens, but the resulting slight offset is neglected for thin lenses.)
  3. A ray through the principal focal point on the near side of the lens. It will proceed parallel to the centerline upon exit from the lens. The third ray is not really needed, since the first two locate the image.
Reversibility of object and image points: conjugate points
Index

Lens concepts

HyperPhysics***** Light and Vision R Nave
Go Back





Ray Diagrams for Convex Lenses

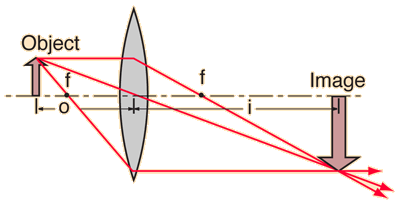

For an object outside the focal point, a real inverted image will be formed.

For an object inside the focal point, a virtual erect image will be formed.
Ray diagrams for lenses
Index

Lens concepts

HyperPhysics***** Light and Vision R Nave
Go Back

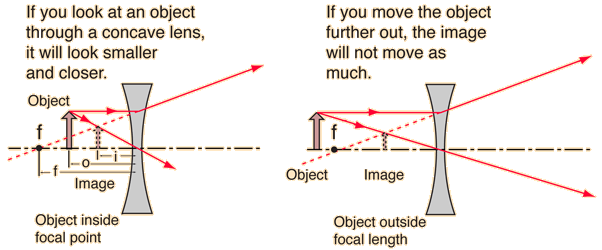

Ray Diagrams for Concave Lenses

The ray diagrams for concave lenses inside and outside the focal point give similar results: an erect virtual image smaller than the object. The image is always formed inside the focal length of the lens.

Ray diagrams for lenses
Index

Lens concepts

HyperPhysics***** Light and Vision R Nave
Go Back

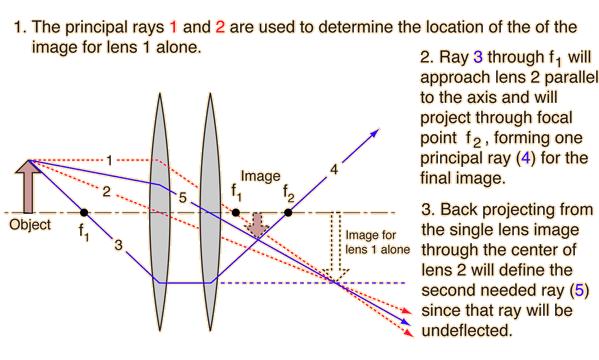

Ray Diagram for Two Lenses

Ray diagrams for lenses
