Dolby Noise Reduction

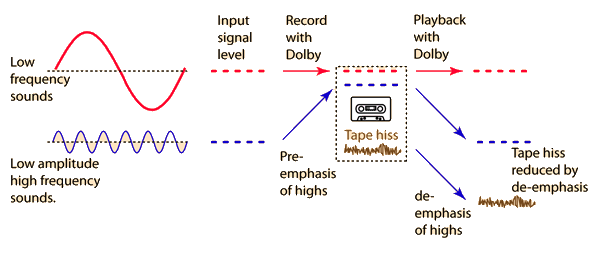

The Dolby systems for noise reduction employ circuitry which pre-emphasizes high frequencies before they are recorded onto tape in order to make them larger than the tape hiss noise with which they compete.

The circuitry is amplitude-sensitive: only soft high-frequency sounds are emphasized. If loud high-frequency sounds were emphasized, it might drive the tape into its distortion levels. Upon playback, a matched de-emphasis circuit is employed to restore the high frequencies to their proper balance with the other part of the recorded signal.

Dolby-B encoding curves
Index

Sound reproduction concepts

Tape recording concepts

HyperPhysics***** Sound R Nave
Go Back








Dolby Systems

The Dolby systems for noise reduction employ circuitry which pre-emphasizes high frequencies before they are recorded onto tape in order to make them larger than the "tape hiss" noise with which they compete.

Dolby A The professional level version of the Dolby process. Used in high speed multi-track machines.
Dolby B The most widespread version of the Dolby process, used in most popular stereo tape decks.
Dolby C A more recent version of the Dolby process involving double compression. The resulting tapes produce more satisfactory results if played on non-Dolby units than the A and B versions.
Dolby-B encoding curvesDolby-B encode/decode balance
Index

Sound reproduction concepts

Tape recording concepts

HyperPhysics***** Sound R Nave
Go Back








Dolby Recording and Playback

If a tape is recorded using a Dolby noise reduction system, then it should by played back with the same system. If the recording and playback systems do not match, several types of problems arise, as summarized in the table.

RECORD
PLAYBACK
RESULT
Without Dolby
Without Dolby
Properly balanced music, but fidelity limited by tape hiss.
With Dolby
Without Dolby
High-frequencies over-emphasized upon playback
Without Dolby
With Dolby
Dull sound from de-emphasized highs, boomy bass
With Dolby
With Dolby
Optimum balance and fidelity.

The problems discussed here are most severe in common practice with Dolby-B, which is the most common for non-professional use. The more recent Dolby-C does not produce as severe a problem when played back on non-Dolby equipment.

Dolby-B encode/decode symmetry

Index

Sound reproduction concepts

Tape recording concepts

HyperPhysics***** Sound R Nave
Go Back

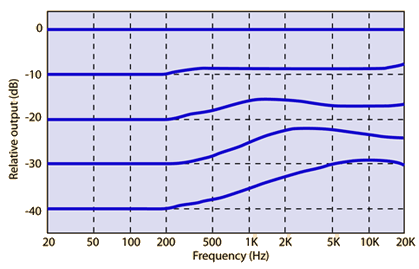

Dolby B-system Encoding

In the Dolby-B system of noise reduction, low-level, high frequency signals are pre- emphasized upon recording as shown by these encoding curves. They are de- emphasized upon playback to discriminate against tape hiss.

Dolby-B encode/decode symmetry
Index

Sound reproduction concepts

Tape recording concepts

HyperPhysics***** Sound R Nave
Go Back

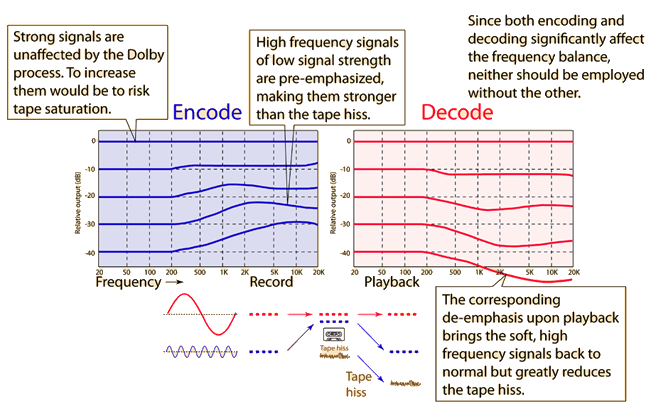

Dolby-B Encode/Decode

Problem of tape hissImportance of record/playback on same system
