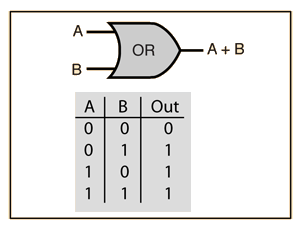

OR Gate

The output is high when either or both of inputs A or B is high. This is logically different from the exclusive OR

How do you make one?
IC Example: IC 7432


Basic Gates
Index

Electronics concepts

Digital Circuits

HyperPhysics*****Electricity and magnetismR Nave
Go Back

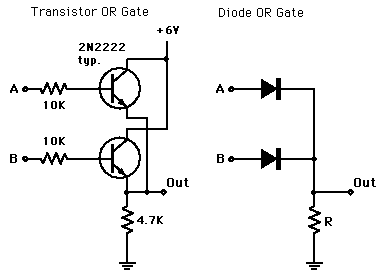

Making an OR Gate

These are ways to make an OR gate from transistor switches or diodes.

Basic Gates
Index

Electronics concepts

Digital Circuits

HyperPhysics*****Electricity and magnetismR Nave
Go Back









IC 7432 OR Gates

This is an example of convenient packaging of OR gates in integrated circuit form.
