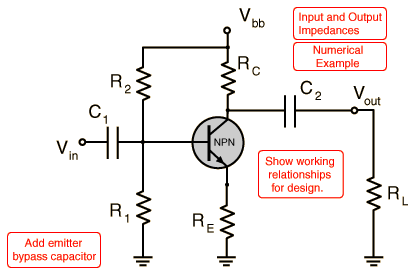

NPN Common Emitter Amplifier
This is an active graphic. Click on any component for a discussion of how its value is designed.
Junction Transistor Amplifiers
Index
Electronics concepts
HyperPhysics
*****
Electricity and magnetism
R Nave
Go Back

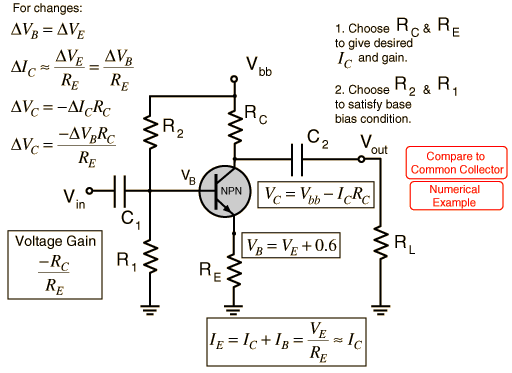

NPN Common Emitter Design
This is an active graphic. Click on any component for a discussion of how its value is designed.
Junction Transistor Amplifiers
Index
Electronics concepts
HyperPhysics
*****
Electricity and magnetism
R Nave
Go Back

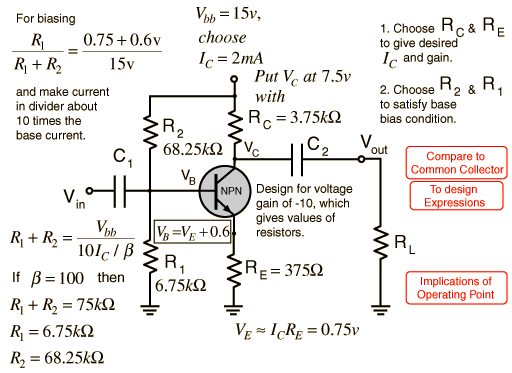

NPN Common Emitter Example
