The Collider Detector Facility (CDF)

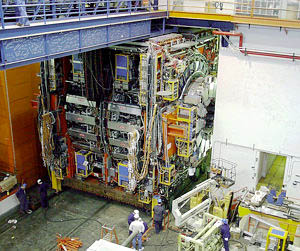

The Tevatron at Fermilab has two detector complexes referred to as CDF and D0. Both are enormous detector arrays weighing some 5000 tons and standing three stories in height.

This detector was involved in the discovery of the top quark in 1995.


Image courtesy Fermilab
Types of Accelerators
Index

Particle concepts

Search for elementary particles

Reference
Rohlf
Ch. 16


Collider Detector Facility

HyperPhysics***** Quantum Physics R Nave
Go Back










The D0 Detector Facility

The Tevatron at Fermilab has two detector complexes referred to as CDF and D0. Both are enormous detector arrays weighing some 5000 tons and standing three stories in height.

This detector was involved in the discovery of the top quark in 1995.


Image courtesy Fermilab

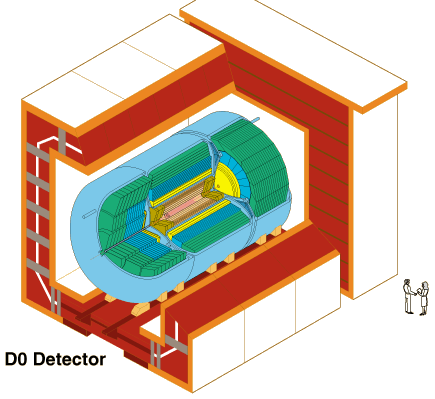

The schematic illustration above shows that the enormous collection of detection hardware is arranged so that the particle beams enter from opposite directions along its central axis. The detectors are arranged around the collision area in to attempt to detect and measure all fragments of the collisions. The logic is somewhat like that for a linear detector array, except that it is wrapped around the beam path to detect particles in any direction.
