Vernier Caliper Use

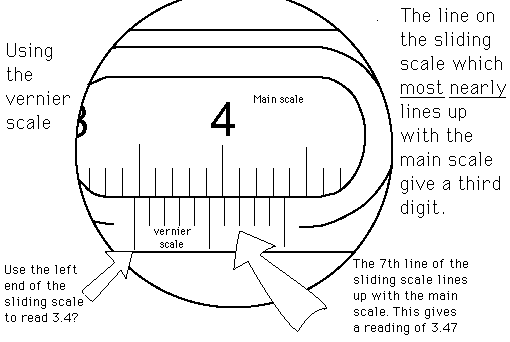

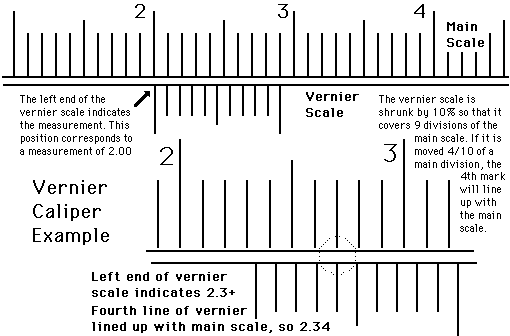

The vernier caliper is used in length measurements to gain an additional digit of accuracy compared to a simple ruler. The details of the vernier principle are shown in the illustrations below, and the movie may be played to see a progression of measurements with a common vernier caliper.
