Dipole Moment

The electric dipole moment for a pair of opposite charges of magnitude q is defined as the magnitude of the charge times the distance between them and the defined direction is toward the positive charge. It is a useful concept in atoms and molecules where the effects of charge separation are measurable, but the distances between the charges are too small to be easily measurable. It is also a useful concept in dielectrics and other applications in solid and liquid materials.

Applications involve the electric field of a dipole and the energy of a dipole when placed in an electric field.


Dipole fieldDipole potentialElectric quadrupole
Index

Electric dipole concepts

HyperPhysics***** Electricity and Magnetism R Nave
Go Back





Electric Dipole Potential

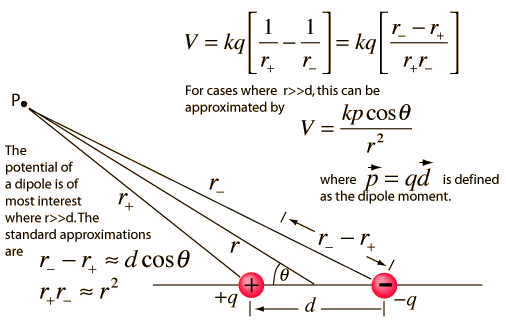

The potential of an electric dipole can be found by superposing the point charge potentials of the two charges:

Show equipotential lines
Potentials for other charge geometries
Index

Voltage concepts

Electric dipole concepts

HyperPhysics***** Electricity and Magnetism R Nave
Go Back






Electric Dipole Field

The electric field of an electric dipole can be constructed as a vector sum of the point charge fields of the two charges:

Direction of
electric dipole
Show equipotential lines
