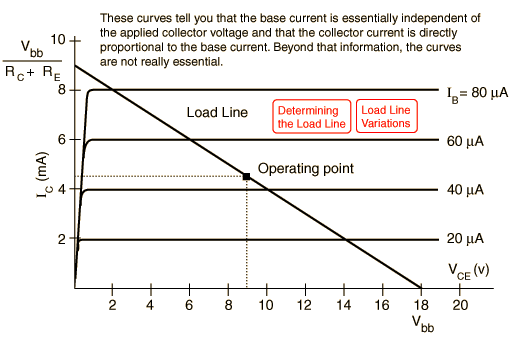

Transistor Characteristic Curves

(Approximate for 2N2222)

Index

Electronics concepts

HyperPhysics*****Electricity and magnetismR Nave
Go Back

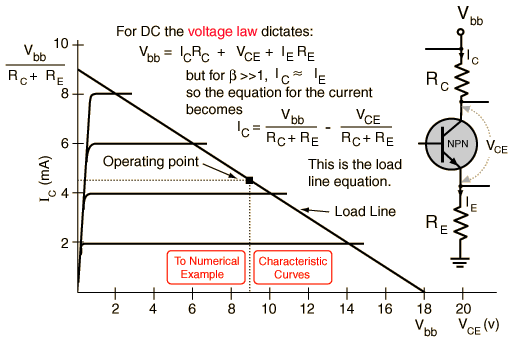

Transistor Load Line

(Approximate for 2N2222)

Index

Electronics concepts

HyperPhysics*****Electricity and magnetismR Nave
Go Back

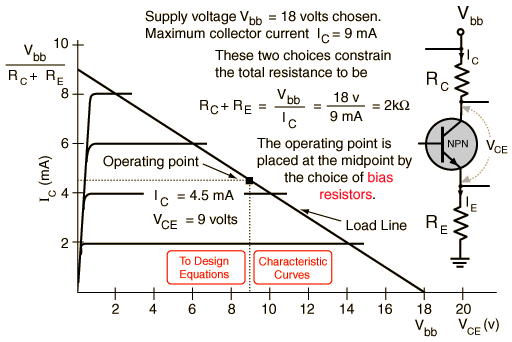

Transistor Load Line

(Approximate for 2N2222)

Index

Electronics concepts

HyperPhysics*****Electricity and magnetismR Nave
Go Back

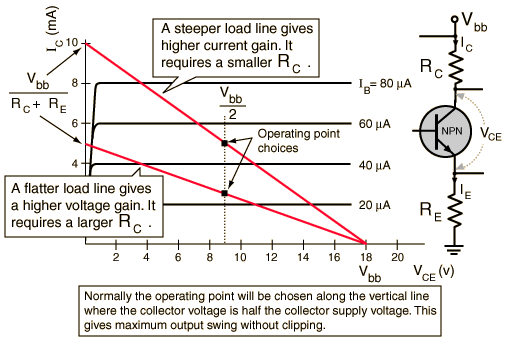

Transistor Load Line Variations

(Approximate for 2N2222)

Characteristic CurvesCommon Emitter AmplifierLoad Line Determination
