# Number Systems

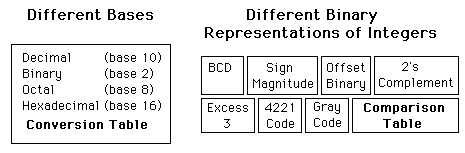

Digital circuits are inherently binary in nature, but several types of representations of numerical data are in use.

The representation of an unsigned integer can be done in binary, octal, decimal or hexadecimal. For display purposes, each decimal digit is often represented by a four-bit binary number in a system called binary coded decimal (BCD). Conversions between these representations can be handled in a routine manner.

The representation of signed numbers presents more problems and those problems are addressed in various ways. Some of the codes used are "sign magnitude", "offset binary", "2's complement", "excess-3", "4221", and "Gray". A table can show the display of four-bit integers.
