Fission Fragments

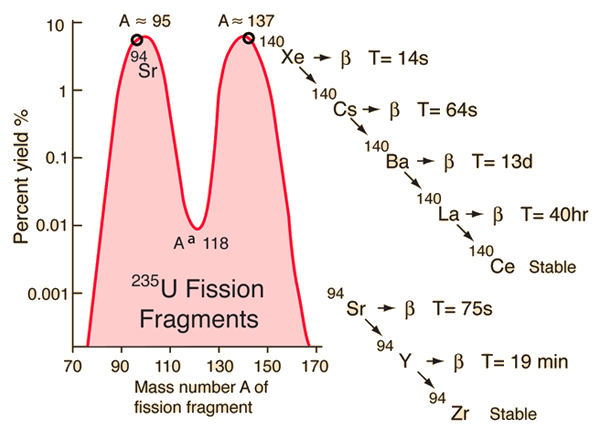

When uranium-235 undergoes fission, the average of the fragment mass is about 118, but very few fragments near that average are found. It is much more probable to break up into unequal fragments, and the most probable fragment masses are around mass 95 and 137. Most of these fission fragments are highly unstable (radioactive), and some of them such as cesium-137 and strontium-90 are extremely dangerous when released to the environment.

Show example

Index

Fission concepts

Table of fission fragments

HyperPhysics***** Nuclear R Nave
Go Back





Fission Fragment Example

A common pair of fragments from uranium-235 fission is xenon and strontium:

Highly radioactive, the xenon decays with a half-life of 14 seconds and finally produces the stable isotope cerium-140. Strontium-94 decays with a half-life of 75 seconds, finally producing the stable isotope zirconium-94. These fragments are not so dangerous as intermediate half-life fragments such as cesium-137.

More detail

Index

Fission concepts

HyperPhysics***** Nuclear R Nave
Go Back





Fission Fragment Decay

This particular set of fragments from uranium-235 fission undergoes a series of beta decays to form stable end products.

Index

HyperPhysics***** Nuclear R Nave
Go Back





Cesium-137

An inevitable byproduct of nuclear fission is the production of fission products which are highly radioactive. Cesium-137 and strontium-90 are the most dangerous radioisotopes to the environment in terms of their long-term effects. Their intermediate half-lives of about 30 years suggests that they are not only highly radioactive but that they have a long enough halflife to be around for hundreds of years. Iodine-131 may give a higher initial dose, but its short halflife of 8 days ensures that it will soon be gone. Besides its persistence and high activity, cesium-137 has the further insidious property of being mistaken for potassium by living organisms and taken up as part of the fluid electrolytes. This means that it is passed on up the food chain and reconcentrated from the environment by that process.

Cesium-137 decay has a half-life of 30.07 years and proceeds by both beta decay and gamma emission from an intermediate state. Both the electron and gamma emissions are highly ionizing radiation. The gamma radiation is very penetrating, and the beta radiation, though very short range, is very dangerous when ingested because it deposits all that energy in a very short distance in tissue.

Cesium's danger as an environmental hazard, damaging when ingested, is made worse by its mimicing of potassium's chemical properties. This ensures that cesium as a contaminant will be ingested, because potassium is needed by all living things.

References:
Environmental Protection Agency bulletin.
Wiki: Cesium-137

Production of Cesium-137 in U235 fission
Index

HyperPhysics***** Nuclear R Nave
Go Back





Strontium-90

An inevitable byproduct of nuclear fission is the production of fission products which are highly radioactive. Strontium-90 and cesium-137 are the radioisotopes which should be most closely guarded against release into the environment. They both have intermediate halflives of around 30 years, which is the worst range for half-lives of radioactive contaminants. It ensures that they are not only highly radioactive but also have a long enough halflife to be around for hundreds of years. Strontium-90 mimics the properties of calcium and is taken up by living organisms and made a part of their electrolytes as well as deposited in bones. As a part of the bones, it is not subsequently excreted like cesium-137 would be. It has the potential for causing cancer or damaging the rapidly reproducing bone marrow cells.

Strontium-90 is not quite as likely as cesium-137 to be released as a part of a nuclear reactor accident because it is much less volatile, but is probably the most dangerous component of the radioactive fallout from a nuclear weapon.

Strontium-90 undergoes beta decay, emitting electrons with energy 0.546 MeV with a half-life of 28.8 years. The decay product is yttrium-90.

References:
Environmental Protection Agency bulletin.
Wiki: Strontium-90

Strontium nuclear data
Index

HyperPhysics***** Nuclear R Nave
Go Back





Iodine-131

An inevitable byproduct of nuclear fission is the production of fission products which are highly radioactive. Iodine-131 is a major concern in any kind of radiation release from a nuclear accident because it is volatile and because it is highly radioactive, having an 8 day half-life. It is of further concern in the human body because iodine is quickly swept up by the thyroid, so that the total intake of iodine becomes concentrated there. The thyroid has a maximum uptake of iodine, however, so some protection against iodine releases can be afforded by taking potassium iodide tablets to load up the thyroid to capacity so that radioactive iodine would be more likely to be excreted.

References:
Environmental Protection Agency bulletin.
Wiki: Iodine-131
