Perspective view of lens structure
Refraction and the eye
Index

Vision concepts

Image formation concepts

HyperPhysics***** Light and Vision R Nave
Go Back





Section of Eye's Lens Structure

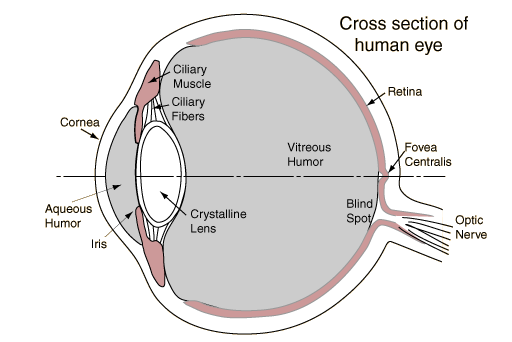

This drawing attempts to show the nature of the suspension of the inner crystalline lens of the eye and its relationship to the cornea. The inner lens is held in place by the ciliary fibers, which are important in the process of accommodation for close vision. See also the cross section of the eye.
