Gravitational Waves

Great excitement about the opening of a new era in the observation of the universe has been generated by the first detection of gravitational waves by the LIGO interferometers on September 14, 2015 at 5:51 a.m. Eastern Daylight Time. This image posted on the Cal Tech site will undoubtedly be an icon for the new field of observation.

These are plots of the signals received by the two LIGO interferometers at Hanford, Washington and Livingston, Louisiana. The two signals were in excellent agreement but separated in time, reaching Hanford 0.007 seconds after detection in Livingston. Corresponding to a distance difference of about 2000 km at the speed of light, this is consistent with the idea that the exchange particle, the graviton, associated with gravity is massless and therefore the gravity wave travels at the speed of light.

Image Courtesy Caltech/MIT/LIGO Laboratory

If an analogy with sound waves were used to describe the signals shown above, you might describe it as a "chirp" since the frequency starts out low and increases until its termination. The initial model of the source of this signal is that of two black holes of masses about 29 and 36 solar masses orbiting each other until they coalesce into a single black hole of mass about 62 solar masses. This would correspond to the conversion of about 3 solar masses into energy during this brief event, described on the Caltech site as having a "peak power output about 50 times that of the whole visible universe".

Although the projected distance has large error bars, the most probable distance is about 1.3 x 109 light years.

References:
Cal Tech, image of data

Caltech news release, February 11, 2016

LIGO Educator's Guide

Einstein and Gravity Waves
Events leading to observed signal
Comments on the model data from this event
Gravity waves from merging neutron stars
Gravity waves from black hole merger observed Aug 14, 2017
Index

Fundamental force concepts

HyperPhysics***** Quantum Physics R Nave
Go Back





Einstein and Gravity Waves

This is a brief description of gravity waves from the LIGO Educator's Guide : "Gravitational waves are 'ripples' in the fabric of spacetime caused by accelerating masses such as colliding black holes, exploding stars, and even the birth of the universe itself. Albert Einstein predicted the existence of gravitational waves in 1916, derived from his General Theory of Relativity. Einstein's mathematics showed that massive accelerating objects would disrupt spacetime in such a way that waves of distorted space would radiate from the source. These ripples travel at the speed of light through the universe, carrying information about their origins, as well as clues to the nature of gravity itself.

Two black holes in mutual orbit will revolve around each other emitting gravitational waves and losing orbital energy as illustrated at right. Over time, the energy loss causes the stars to move closer together and orbit around each other faster and faster until they eventually merge together, or coalesce. This type of merger has never before been directly observed, and it is the type of event that emitted the gravitational waves detected by LIGO on September 14, 2015.

Index

Fundamental force concepts

HyperPhysics***** Quantum Physics R Nave
Go Back





Events Leading to Observed Gravity Wave Signal

These descriptive images from the LIGO Educator's Guide depict models of the events leading to the LIGO observations of gravity waves on September 14, 2015.


Artist's depiction of the merger process of two black holes, accompanied by the actual waveforms detected by LIGO Hanford and Livingston detectors. Credit: SSU E/PO Aurore Simonnet

GW150914 models. Credit: LIGO

The gravitational waves for two coalescing black holes was compared to the gravitational wave signal from LIGO and was found to be very similar.

Index

Fundamental force concepts

HyperPhysics***** Quantum Physics R Nave
Go Back





Comments on the Model of the Gravity Wave Event

The model of the observed gravitational wave event suggests the coalescing of two black holes of masses 29 and 36 solar masses. The Schwarzschild radii of such black holes would be about 86km and 106km respectively. Before coalescing into one black hole, they were orbiting each other in a binary orbit which can be modeled based on the period of rotation.
The times between the centers of the last few peaks were scaled as shown. The Science News article says that in the 0.2 seconds before the coalition of the two bodies the frequency increased from 17 to 75 revolutions per second.

The model suggests that the final black hole is about 62 solar masses, so that 3 solar masses were converted to energy in the gravitational waves. Considering that about 1 gram of mass conversion powered the Hiroshima bomb, this is hard to visualize. The team's comparison was to suggest that the power was over 50 times the total light output of the universe.

The 0.007 second interval between the detection of the gravitational waves at Livingston and Hanford is quite significant. That corresponds to about 2100 km at the speed of light, so correlates well with the presumption that gravity waves made up of gravitons travel at the speed of light, being massless.

Index

Fundamental force concepts

HyperPhysics***** Quantum Physics R Nave
Go Back





Gravity Waves from Merging Neutron Stars


Images from LIGO site.

From the press release from the LIGO Lab: "For the first time, scientists have directly detected gravitational waves - ripples in space-time - in addition to light from the spectacular collision of two neutron stars. This marks the first time that a cosmic event has been viewed in both gravitational waves and light. The discovery was made using the U.S.-based Laser Interferometer Gravitational-Wave Observatory (LIGO); the Europe-based Virgo detector; and some 70 ground- and space-based observatories."

"As these neutron stars spiraled together, they emitted gravitational waves that were detectable for about 100 seconds; when they collided, a flash of light in the form of gamma rays was emitted and seen on Earth about two seconds after the gravitational waves. In the days and weeks following the smashup, other forms of light, or electromagnetic radiation - including X-ray, ultraviolet, optical, infrared, and radio waves - were detected."

"The gravitational signal, named GW170817, was first detected on August 17, 2017 at 8:41 a.m. Eastern Daylight Time; the detection was made by the two identical LIGO detectors, located in Hanford, Washington, and Livingston, Louisiana. The information provided by the third detector, Virgo, situated near Pisa, Italy, enabled an improvement in localizing the cosmic event. At the time, LIGO was nearing the end of its second observing run since being upgraded in a program called Advanced LIGO, while Virgo had begun its first run after recently completing an upgrade known as Advanced Virgo."

The LIGO data indicated that the merger was at the relatively close distance of about 130 million light years. The inspiraling objects were estimate to be in the range of 1.1 to 1.6 solar masses, so they were in the range of neutron star masses, and not as large as black holes. Gamma ray bursts were detected by the Fermi space telescope and the Integral gamma-ray observatory operated by the European Space Agency. For years it has been suspected that observed short gamma-ray bursts were produced by neutron star mergers, but this was the first direct correlation.

"Observations made by the U.S. Gemini Observatory, the European Very Large Telescope, and the Hubble Space Telescope reveal signatures of recently synthesized material, including gold and platinum, solving a decades-long mystery of where about half of all elements heavier than iron are produced." This research has added to the picture of the synthesis of heavy elements, suggesting that some of the heavy elements that have been attributed to supernovae are instead formed in neutron star mergers. "

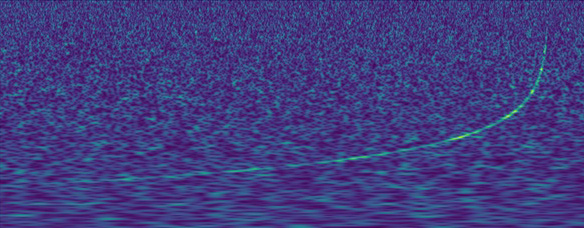

This spectrogram from the LIGO site shows the "chirp" or increasing frequency signal as the neutron stars came closer to each other, producing higher frequency as they circle faster.
