Radiation Curves

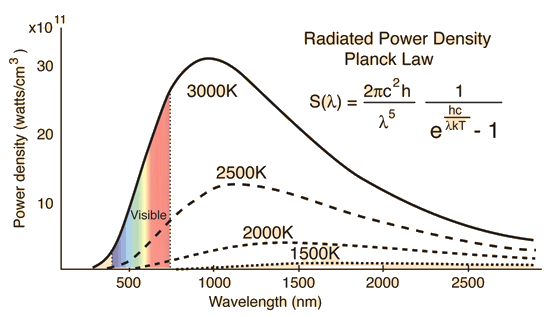

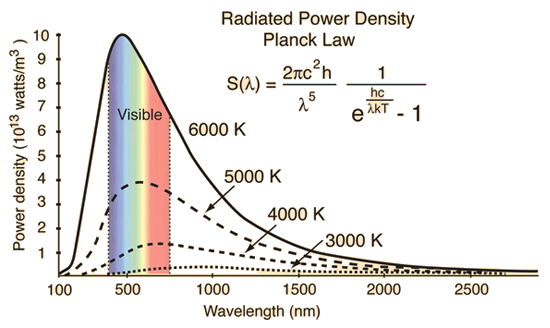

6000K

3000K
Red hot
300K
3K
Iradiance curve of the Sun
Index

Blackbody radiation concepts

HyperPhysics***** Quantum Physics R Nave
Go Back





Radiation Curves

6000K

3000K

Red hot
300K
3K
Index

Blackbody radiation concepts

HyperPhysics***** Quantum Physics R Nave
Go Back





Radiation Curves

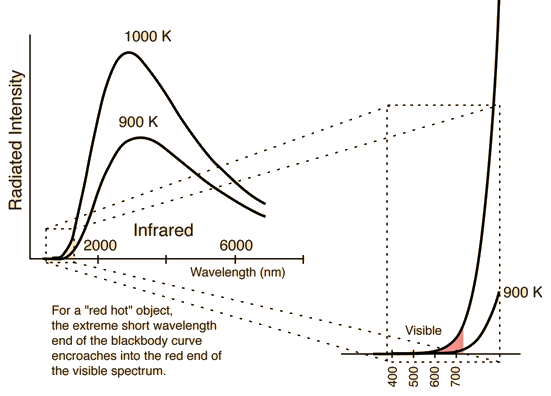

Somewhere in the range 900K to 1000K, the blackbody spectrum encroaches enough in the the visible to be seen as a dull red glow. Most of the radiated energy is in the infrared.
6000K
3000K

Red hot

300K
3K
Index

Blackbody radiation concepts

HyperPhysics***** Quantum Physics R Nave
Go Back





Radiation Curves

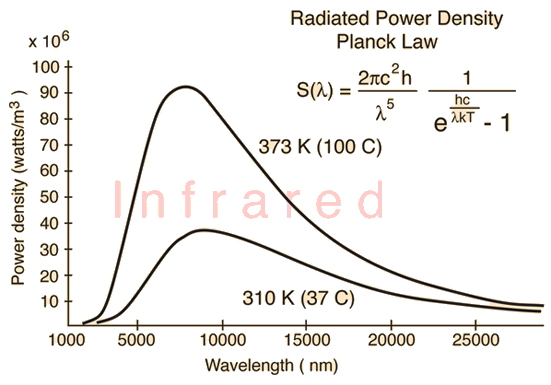

Essentially all of the radiation from the human body and its ordinary surroundings is in the infrared portion of the electromagnetic spectrum, which ranges from about 1000 to 1,000,000 on this scale.
6000K
3000K
Red hot

300K

3K
Index

Blackbody radiation concepts

HyperPhysics***** Quantum Physics R Nave
Go Back





Radiation Curves

6000K
3000K
Red hot
300K

3K

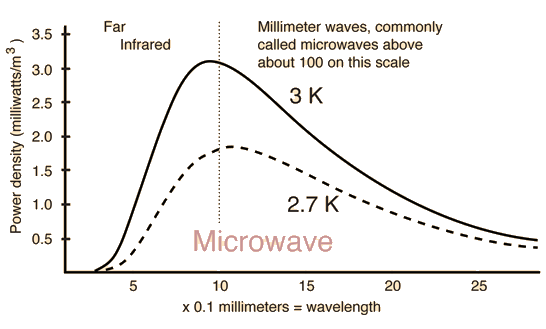

3K Background Radiation
