Bridge Rectifier

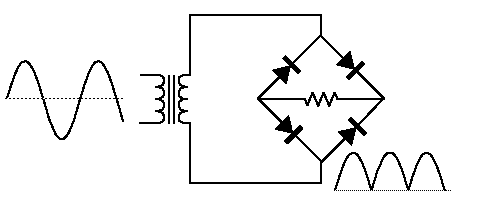

A bridge rectifier makes use of four diodes in a bridge arrangement to achieve full-wave rectification. This is a widely used configuration, both with individual diodes wired as shown and with single component bridges where the diode bridge is wired internally.

Add RC filterAdd LC filterCurrent flow in the bridge
Index

Rectifiers

HyperPhysics*****Electricity and magnetism*****ElectronicsR Nave
Go Back





Bridge Rectifier, RC Filter

A bridge rectifier makes use of four diodes in a bridge arrangement to achieve full-wave rectification. This is a widely used configuration, both with individual diodes wired as shown and with single component bridges where the diode bridge is wired internally.

Remove filterUse LC filter
Analyze ripple voltage
Index

Rectifiers

HyperPhysics*****Electricity and magnetism*****ElectronicsR Nave
Go Back





Bridge Rectifier, LC Filter

A bridge rectifier makes use of four diodes in a bridge arrangement to achieve full-wave rectification. This is a widely used configuration, both with individual diodes wired as shown and with single component bridges where the diode bridge is wired internally.

Remove filterUse RC filter
Index

Rectifiers

HyperPhysics*****Electricity and magnetism*****ElectronicsR Nave
Go Back







Current Flow in the Bridge Rectifier

For both positive and negative swings of the transformer, there is a forward path through the diode bridge. Both conduction paths cause current to flow in the same direction through the load resistor, accomplishing full-wave rectification.
While one set of diodes is forward biased, the other set is reverse biased and effectively eliminated from the circuit.
Bridge rectifier discussion
Index

Rectifiers

Reference
Floyd, Electronic Devices
