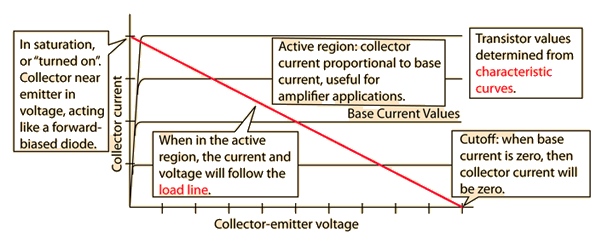

# Transistor Operation

A transistor in a circuit will be in one of three conditions
1. Cut off (no collector current), useful for switch operation.
2. In the active region (some collector current, more than a few tenths of a volt above the emitter), useful for amplifier applications
3. In saturation (collector a few tenths of a volt above emitter), large current useful for "switch on" applications.
Index

Semiconductor concepts

Semiconductors for electronics

 HyperPhysics***** Condensed Matter R Nave
Go Back

# Collector Current Determination

The base-emitter voltage VBE can be considered to be the controlling variable in determining transistor action. The collector current is related to this voltage by the Ebers-Moll relationship (sometimes labeled the Shockley equation):

 where T = absolute temperature k = Boltzmann's constant e = electron charge
The saturation current is characteristic of the particular transistor (a parameter which itself has a temperature dependence). This relationship is stable over a wide range of voltages and currents. A further useful relationship is
 IC=βIB where β can be called the current gain. The value of β is not highly dependable since it depends on IC , VCE, and the temperature.
Index

Semiconductor concepts

Semiconductors for electronics

References
Horowitz & Hill
Sec. 2.10

Floyd
Electronic Devices, Appendix B

 HyperPhysics***** Condensed Matter R Nave
Go Back

# Base-Emitter Junction Details

Some useful "rules of thumb" which help in understanding transistor action are (from Horowitz & Hill):
1. A base emitter voltage VBE of about 0.6 v will "turn on" the base-emitter diode and that voltage changes very little, < +/- 0.1v throughout the active range of the transistor which may change base current by a factor of 10 or more.
2. An increase in base-emitter voltage VBE by about 60 mV will increase the collector current IC by about a factor of 10.
3. The effective AC series resistance of the emitter is about 25/IC ohms.
4. The base-emitter voltage VBE is temperature dependent, decreasing about 2.1 mV/C
5. The base-emitter voltage VBE varies slightly with the collector-emitter voltage VCE at constant collector current IC : ΔVBE ≈ -0.001ΔVCE.
 Base-emitter Voltage Curve
Index

Reference
Horowitz & Hill
Sec 2.10

Semiconductor concepts

Semiconductors for electronics

 HyperPhysics***** Condensed Matter R Nave
Go Back

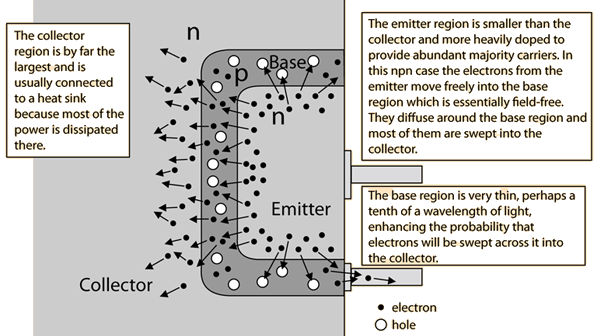

# Transistor Action

 More on transistor regions
Index

Semiconductor concepts

Semiconductors for electronics

Reference
Simpson
Ch 5

 HyperPhysics***** Condensed Matter R Nave
Go Back

 Transistor action
Index

Semiconductor concepts

Semiconductors for electronics

 HyperPhysics***** Condensed Matter R Nave
Go Back

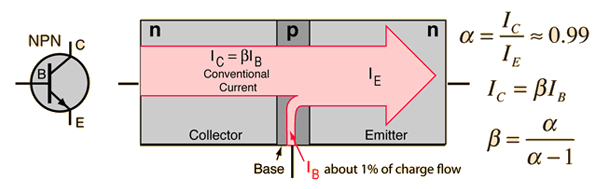

# Collector Current

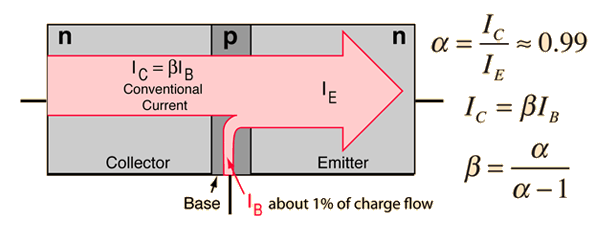

Normal transistor action results in a collector-to-emitter current which is about 99% of the total current. The usual symbols used to express the transistor current relationships are shown.

The proportionality β can take values in the range 20 to 200 and is not a constant even for a given transistor. It increases for larger emitter currents because the larger number of electrons injected into the base exceeds the available holes for recombination so the fraction which recombine to produce base current delines even further.

 Use of the current gain beta.
Index

Semiconductor concepts

Semiconductors for electronics

 HyperPhysics***** Condensed Matter R Nave
Go Back

# Use of the Current Gain

Any circuit that depends on a specific value of the current gain β is a bad circuit because that value varies for a given transistor as well as between different transistors of the same type.

The current gain is useful for:
 Design of the biasing circuits Common Emitter Common Collector Calculation of impedances Common Emitter Common Collector
