Conductors and Insulators

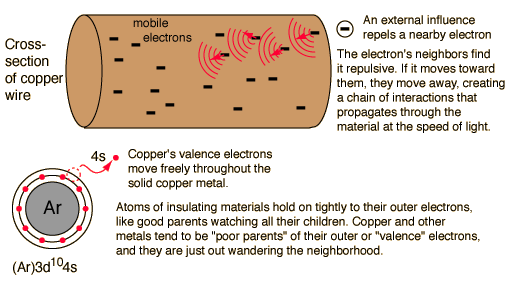

In a conductor, electric current can flow freely, in an insulator it cannot. Metals such as copper typify conductors, while most non-metallic solids are said to be good insulators, having extremely high resistance to the flow of charge through them. "Conductor" implies that the outer electrons of the atoms are loosely bound and free to move through the material. Most atoms hold on to their electrons tightly and are insulators. In copper, the valence electrons are essentially free and strongly repel each other. Any external influence which moves one of them will cause a repulsion of other electrons which propagates, "domino fashion" through the conductor.

Simply stated, most metals are good electrical conductors, most nonmetals are not. Metals are also generally good heat conductors while nonmetals are not.

ResistivitySuperconductors
Index

HyperPhysics***** Electricity and Magnetism R Nave
Go Back





Insulators

Most solid materials are classified as insulators because they offer very large resistance to the flow of electric current. Metals are classified as conductors because their outer electrons are not tightly bound, but in most materials even the outermost electrons are so tightly bound that there is essentially zero electron flow through them with ordinary voltages. Some materials are particularly good insulators and can be characterized by their high resistivities:

Resistivity (ohm m)
Glass
1012
Mica
9 x 1013
Quartz (fused)
5 x 1016

This is compared to the resistivity of copper:

Resistivity (ohm m)
Copper
1.7 x 10-8


Energy band modelDielectric insulators
Index

HyperPhysics***** Electricity and Magnetism R Nave
Go Back





Circuit Elements

Electric circuits are considered to be made up of localized circuit elements connected by wires which have essentially negligible resistance. The three basic circuit elements are resistors, capacitors, and inductors. Only these passive elements will be considered here; active circuit elements are the subject of electronics.
