Transformer

A transformer makes use of Faraday's law and the ferromagnetic properties of an iron core to efficiently raise or lower AC voltages. It of course cannot increase power so that if the voltage is raised, the current is proportionally lowered and vice versa.

Show

Calculation
Reflected Load in a Transformer
Index

Transformer concepts

Magnetic field concepts

HyperPhysics*****Electricity and magnetismR Nave
Go Back

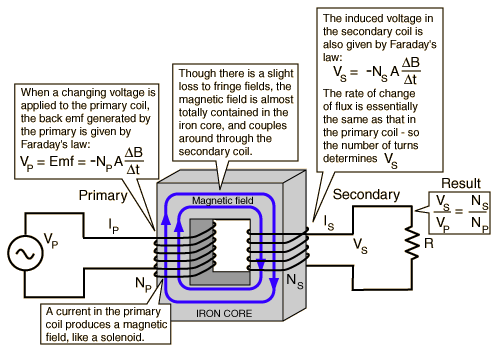

Transformer and Faraday's Law

Faraday's lawSolenoid magnetic fieldCalculation
Index

Magnetic force

Transformer concepts

Faraday's law concepts

HyperPhysics*****Electricity and magnetismR Nave
Go Back










Ideal Transformer Calculation

Primary
Primary voltage =
VP = volts.
Primary current =
IP = amps
Primary turns =
NP =turns
Secondary
Secondary voltage =
VS = volts
Secondary current =
IS = amps
Secondary turns =
NS = turns
Load resistor =
R = ohms
For an ideal transformer:
Power
Power used = PP = PS = watts

The ideal transformer neglects losses to resistive heating in the primary coil and assumes ideal coupling to the secondary (i.e., no magnetic losses).

More realistic treatment:
Numerical example
Calculation with primary losses

Notes: For this exploratory calculation, you may enter data for any parameter except the power. Then click on the active text for the parameter you wish to calculate; values will not be forced to be consistent until you do. For primary calculations, the voltage and number of turns in the secondary will be considered to be established and vice versa. Default values will be entered for unspecified parameters, but all values except the power may be changed.
