Color Temperature

Suppose you want to produce an image which gives an accurate rendition of the colors of an object. The first problem is that the visual colors of the object depend upon the light which illuminates it, since the object partially absorbs and partially reflects the different colors in the illuminating light. You could say "illuminate the object with white light", but the question "What is white light?" is a non-trivial one.

In terms of the basic color characteristics hue, saturation and brightness, white light would be considered to be light of zero saturation (achromatic) and high brightness. Since there is no single light source that can be said to produce perfectly white light, the approach of color research has been to map the human perception of color on a C.I.E. Chromaticity diagram. This diagram shows that there is a region of visual perception that you could label as "white", but not all whites are equal.

This chromaticity diagram maps all the colors that are visible to the human eye, although its representation on a page or a computer screen is never completely accurate because such display processes cannot cover the full range of the human eye. Note that toward the center of the diagram is an area labeled "white", an area where the colors are so unsaturated that they approach white. The colors at the edge of the diagram are fully saturated.

The curved line drawn through the white region shows the chromaticity of very hot incandescent objects referred to as blackbody radiators. The numbers along the curve are the absolute temperatures of the hot object in Kelvins.

A hot object emits radiation which is distributed according to a universal blackbody radiation curve, so it represents a stable standard for comparison with the spectral distribution and perceived color of any light source. For any light source which is approximately white, we can define a "color temperature" as the temperature associated with the blackbody radiator at the point on the curve closest to that source's location on the chromaticity diagram.

It will be evident from the illustration above that sources with very high color temperatures will have more blue content, and those with low color temperatures will have more yellow content. Williamson and Cummins suggest a color temperature of about 2800K for a 100w incandescent bulb, a color temperature of 4870K for direct sunlight and 6770K for light from an overcast sky.

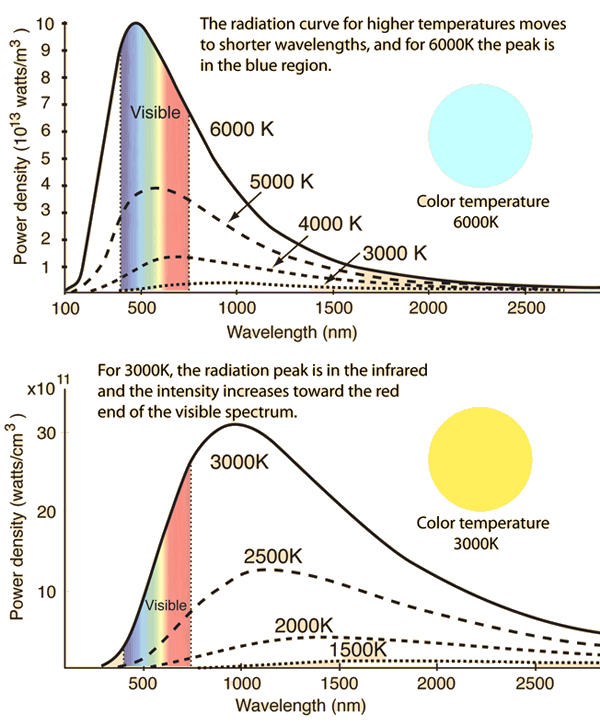

This is an attempt to illustrate the origin of the difference in color for different temperature hot objects. None of the colors should be taken as accurate - this is a qualitative description. The colors representing the color temperatures 3000K and 6000K are far too saturated, but hopefully they serve to communicate the general nature of the difference for blackbody radiators of different temperature.

To provide some reasonable standards for color measurements, three standard illuminants A, B, and C have been used. They are shown on the chromaticity diagram section above. Illuminant A is a blackbody at 2854K, closely approximated by a 500 watt incandescent bulb. Illuminant B is direct sunlight at noon on a clear day with a color temperature of 4870K. Illuminant C is skylight on an overcast day with color temperature 6770K.

Standard Illuminants

Historically, three standard illuminants labeled A, B and C have been used as references for color determination. They are labeled on the section of the CIE chromaticity diagram at left along the curve which represents a blackbody radiator. Illuminant A is a blackbody at 2854K, closely approximated by a 500 watt incandescent bulb. Illuminant B is direct sunlight at noon on a clear day with a color temperature of 4870K. Illuminant C is skylight on an overcast day with color temperature 6770K. Illuminants B and C, which are daylight sources, can be simulated by using source A and specially developed liquid filters. Illuminant E is said to be and "equal energy" radiator, with constant spectral power density in the visible range. It is used as a theoretical reference.

The D-series of standard illuminants were developed by Judd, MacAdam and Wyszechi to represent natural daylight. They are designated D₅₀, D₅₅, D₆₅ and D₇₅. The D₆₅ source is noted on the chromaticity diagram above and corresponds to 6500K color temperature (actually 6504K because of a refinement of values of the constants in Planck's law).
